INTRODUCTION

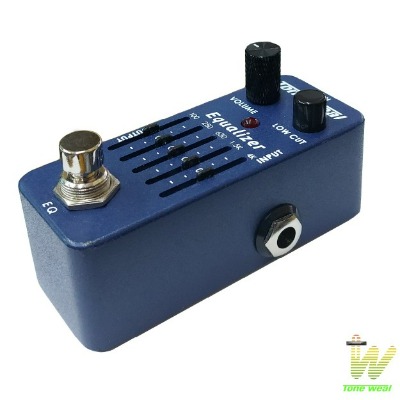

Designed/Made in Taiwan, Part of the MINI pedal series, Tone weal EQ is a vintage EQ sound and pro-quality tones with a compact box. It features a knob with a button for Volume control with a Low-frequency cut.
A true bypass switch provides the shortest, most direct cleanest tone. Analog circuitry offers players a warm, classic, and full-sounding EQ tone.
-

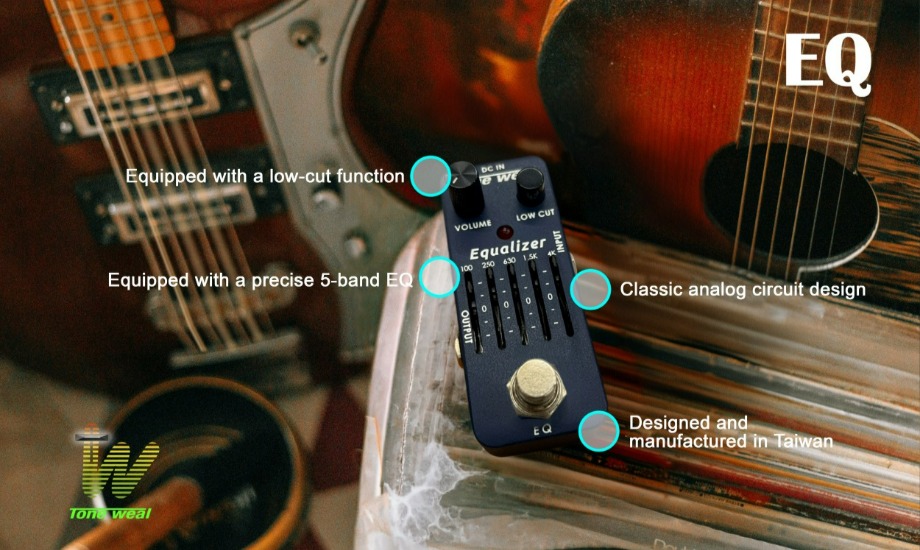

FEATURE
・Pure analog circuitry with warm analog tone
・ Pro-quality tones with precise frequency point
・5-band graphic equalizer
・ Low-cut button to reduce low-frequency noise
・ Adjustable gain range 18dB for each frequency band
・Hard and small metal case
・ True Bypass

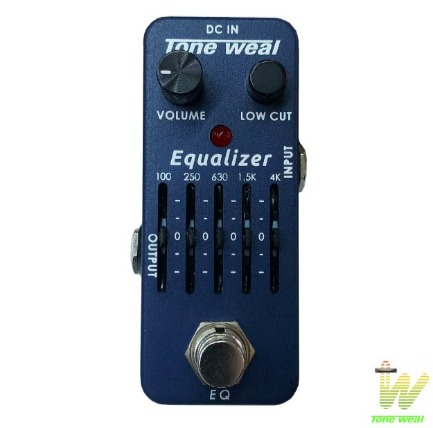

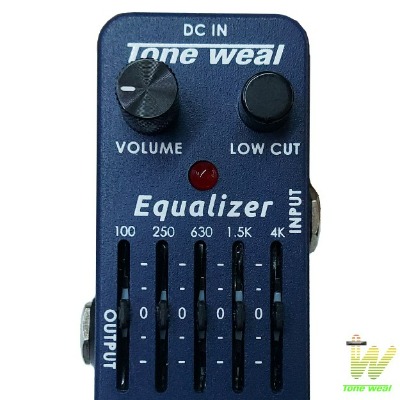

1. VOLUME: Adjust the level of output
2. DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter
3. LOW CUT: Press the button to cut low frequency from 75Hz
4. INPUT: This input jack receives output from electric guitar
5. 5-band Slider: Adjust the level of each frequency band (-18dB/+18dB)
6. PEDAL SWITCH: Toggles effect on (red LED indicator on), bypass(LED indicator off)
7. OUTPUT: This This output jack to AMP or other pedal unit
-
SPECIFICATION
Nominal Input Level................-20 dBu
Input Impedance.....................1M ohms
Nominal Output Level.............-20 dBu
Output Impedance..................100k ohms
Bypass True ...........................Hardwire
Current Draw...........................7 mA
Power Supply..........................9 V DC:
Size and Weight
Width.......................................113mm
Depth.......................................63mm
Height......................................34mm
Weight......................................0.3kg
-
