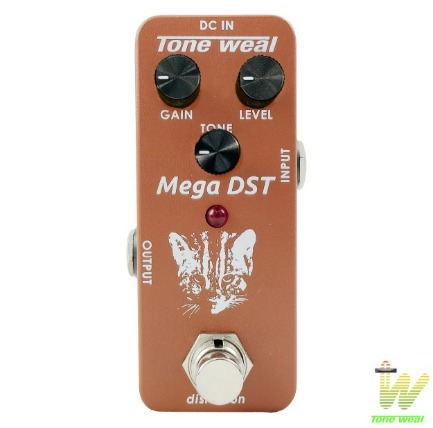

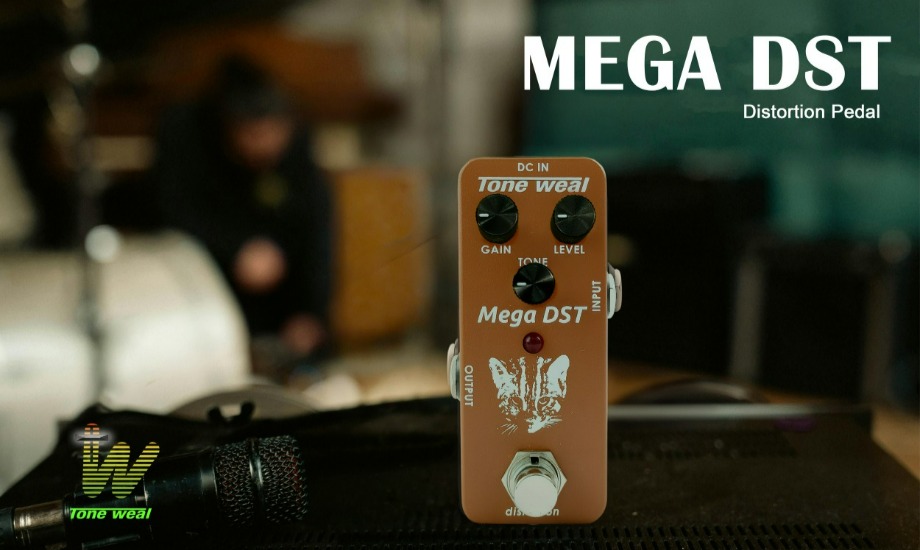

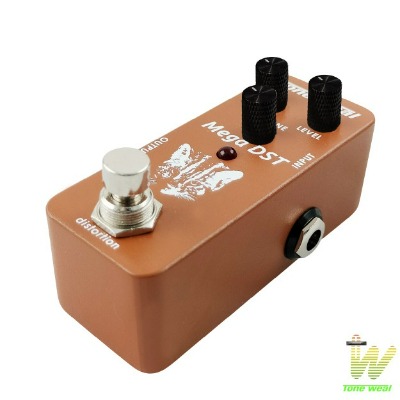

INTRODUCTION
Designed/Made in Taiwan, Part of the MINI pedal series, the Tone weal custom circuit, based on a classic distortion and famous brand tone fusion, Balanced out the midrange and high range gain for a sweeter, more natural sound. Mega DST thick, saturated sound is perfectly suited for metal styles and great for playing heavy rhythms and solos in other genres. With the extensive tone-shaping range and ultra-smooth sustain, the Mega DST brings rich distortion voices to any musical setting.

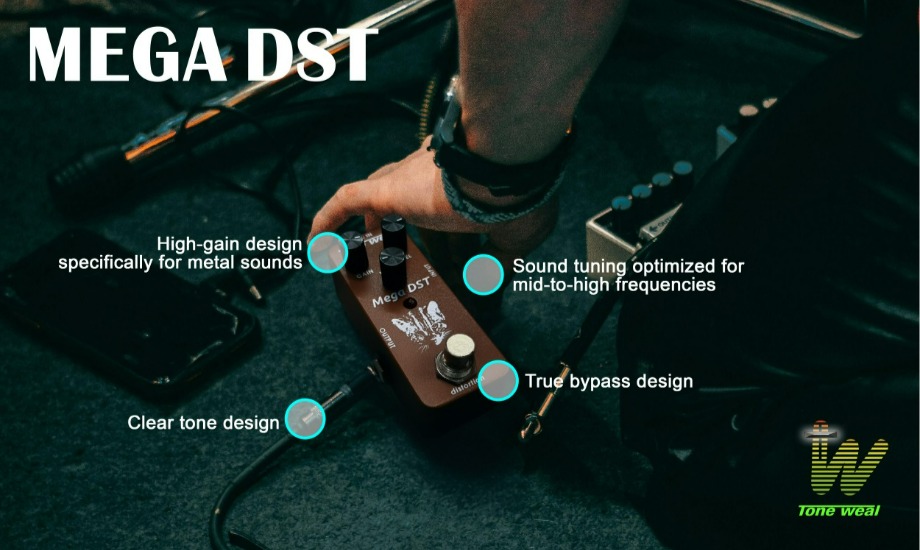

FEATURES
- Classic Distortion circuit customized of Tone weal
- For metal styles and great for playing heavy rhythms and solos in other genres
- The innovative gain circuit produces thick and tight distortion sounds with a smooth range of tuning
- Easy to achieve massive gain, satisfying sounds with volume level
- True hardwire bypass

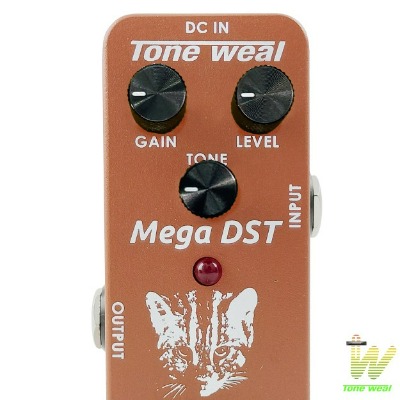

CONTROL GUIDE
- GAIN: This knob controls the intensity of the distortion effect
- DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter
- LEVEL: This knob adjusts the volume of the effect sound
- INPUT: This input jack receives output from electric guitar
- PEDAL SWITCH: Toggles effect on (red LED indicator on),bypass(LED indicator off)
- TONE: This knob controls the tone of the effect sound at High/low frequencies
SPECIFICATION
Nominal Input Level..............-20 d
BuInput Impedance...................1M ohms
Nominal Output Level............-20 dBu
Output Impedance................100k ohms
Bypass True..........................Hardwire
Current Draw........................7 mA
Power Supply........................9 V DC:
Size and Weight
Width.....................................113mm
Depth....................................63mm
Height ..................................34mm
Weight..................................0.3kg
