INTRODUCTION

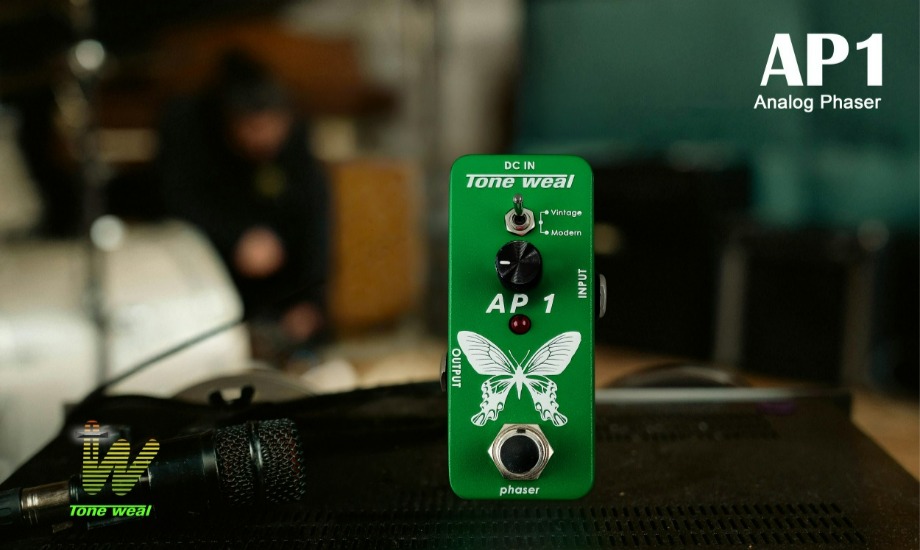

Design/Made in Taiwan, Part of the MINI pedal series, the AP1 Phaser is a vintage phaser sound and pro-quality tones with a compact box. It features one knob to control speed, and one switch selects the phaser waveform type. A true bypass switch provides the shortest, most direct cleanest tone. Analog circuitry offers players a warm, classic, and full-sounding phaser tone.
-
FEATURE

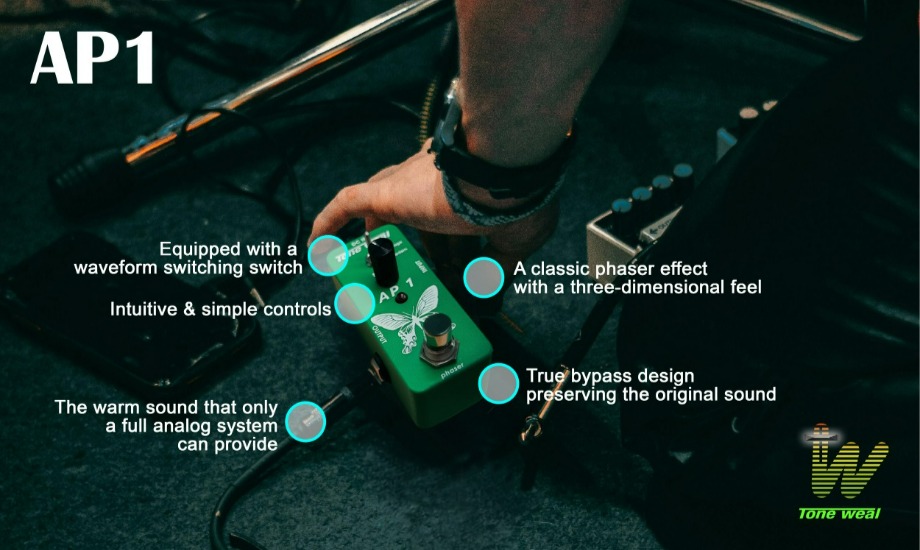

・Pure analog circuitry with Warm and suspending analog tone
・Tone weal designed Vintage phaser sound
・Pro-quality tones with convenient control
・Two Waveform type selectors and Speed controls
・True Bypass

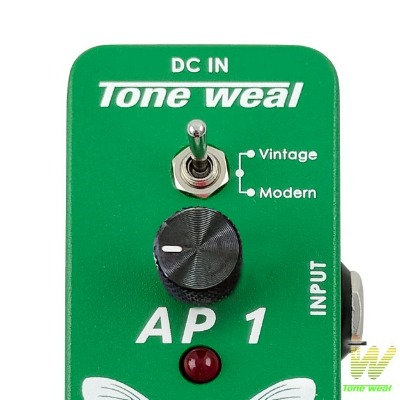

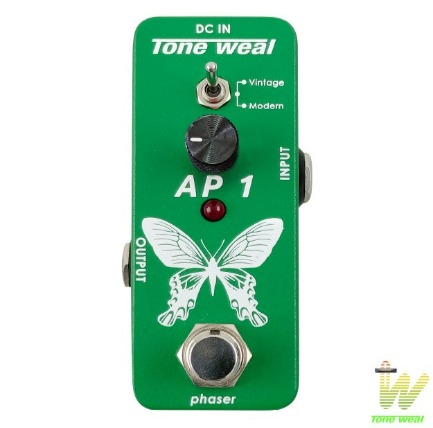

1. SPEED: Phase shift oscillation rate control
2. DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter
3. Vintage / Modern: Phase Shift Waveform Selection
4. INPUT: This input jack receives output from electric guitar

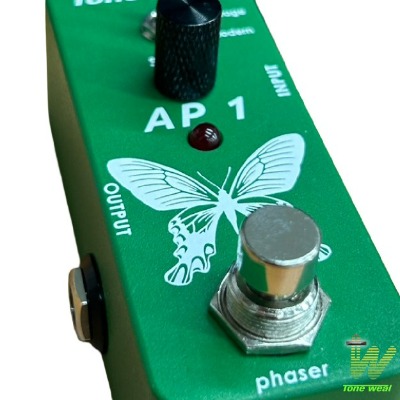

5. PEDAL SWITCH: Toggles effect on (red LED indicator on),bypass(LED indicator off)
6. OUTPUT: This This output jack to AMP or other pedal unit
-
SPECIFICATION
Nominal Input Level................-20 dBu
Input Impedance.....................1M ohms
Nominal Output Level.............-20 dBu
Output Impedance..................100k ohms
Bypass True ...........................Hardwire
Current Draw...........................7 mA
Power Supply..........................9 V DC:
Size and Weight
Width.......................................113mm
Depth.......................................63mm
Height......................................34mm
Weight......................................0.3kg
-
