INTRODUCTION

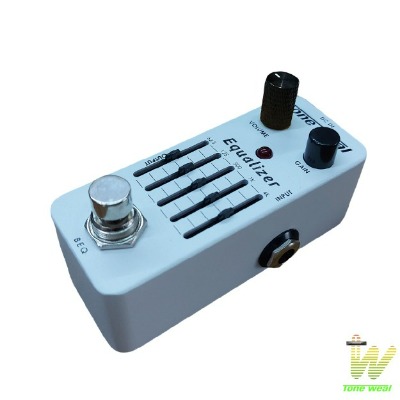

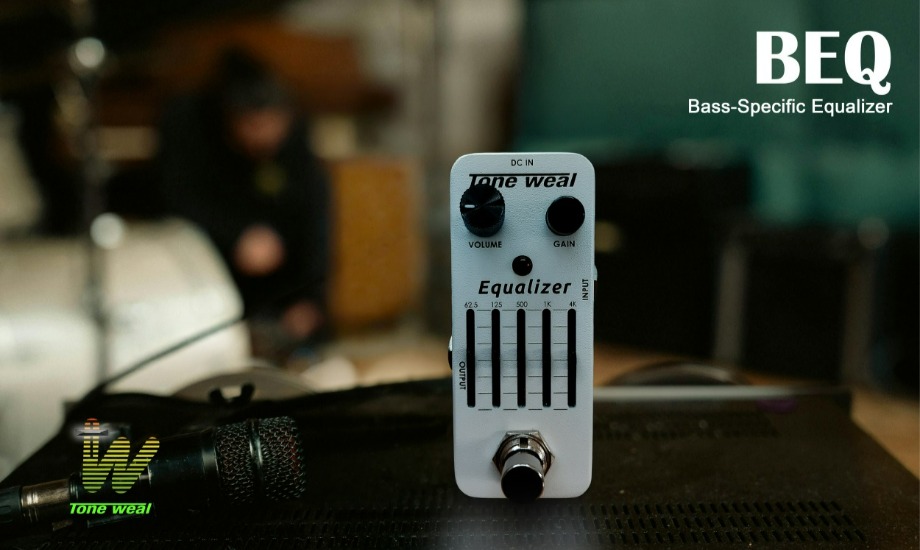

Designed/Made in Taiwan, Part of the MINI pedal series, the Equalizer BEQ is an accurate frequency of vintage sound and pro-quality tones with a compact box to compensate and increase your Bass guitar tone frequency insufficient. It features 5-Bands controls of ISO frequency. A true bypass switch provides the shortest, most direct cleanest tone. Analog circuitry offers players a warm, classic, and full-sounding BEQ tone.

FEATURE

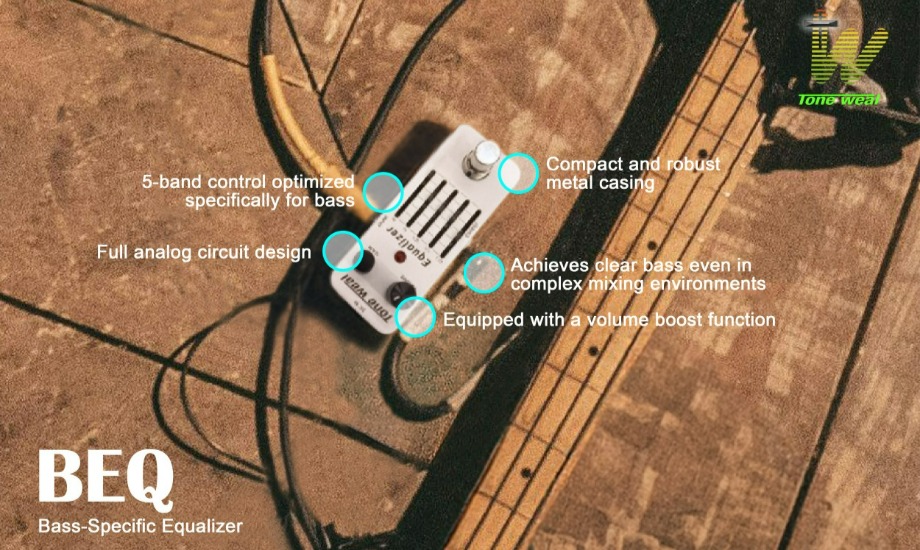

・ Pure analog circuitry with warm analog tone

・Pro-quality tones with precise frequency point

・5-band graphic equalizer

・Increase your Bass guitar tone frequency insufficient

・ Adjustable gain range 18dB for each frequency band

・Hard and small metal case

・True Bypass

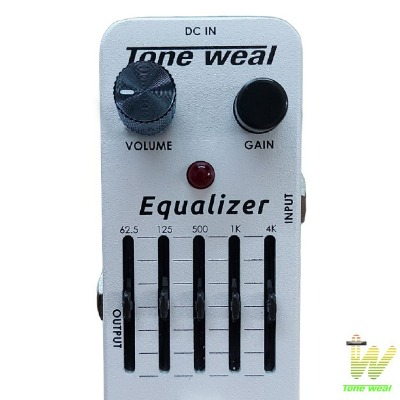

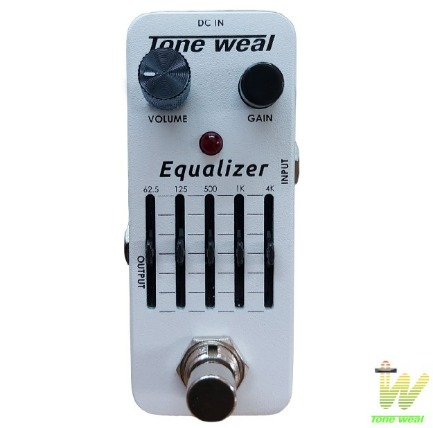

1. VOLUME: Adjust the level of output

2. DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter

3. GAIN: Push this button for increase output level 6Bd gain.

4. INPUT: This input jack receives output from electric guitar

5. 5-band Slider: Adjust the level of each frequency band(-18dB/+18dB)

6. PEDAL SWITCH: Toggles effect on (red LED indicator on),bypass(LED indicator off)

7. OUTPUT: This output jack to AMP or other pedal unit

SPECIFICATION

Nominal Input Level................-20 dBu

Input Impedance.....................1M ohms

Nominal Output Level.............-20 dBu

Output Impedance..................100k ohms

Bypass True ...........................Hardwire

Current Draw...........................7 mA

Power Supply..........................9 V DC:

Size and Weight

Width.......................................113mm

Depth.......................................63mm

Height......................................34mm

Weight......................................0.3kg
