INTRODUCTION
Designed/Made Taiwan, Part of the MINI pedal series, the Classical Drive is a vintage overdrive sound and pro-quality tones with a compact box. It features two knob controls of Drive and level.A true bypass switch provides the shortest, direct cleanest tone. Tone weal design circuitry offers players a warm, classic, and full-sounding over drive tone.
-
FEATURE
・Pure analog circuitry with Tone Weal design warm analog tone
・Vintage over-drive sound, Ideal for use with clean amps
・Pro-quality tones in a convenient carry
・Drive, Level controls
・True Bypass

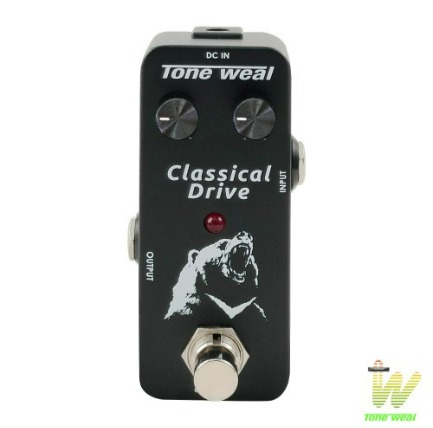

1. DRIVE: This knob controls the intensity of the Ocerdrive effect
2. DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter
3. Level: This knob adjusts the volume of the effect sound
4. INPUT: This input jack receives output from electric guitar
5. PEDAL SWITCH: Toggles effect on (red LED indicator on),bypass(LED indicator off)
6. OUTPUT: This This output jack to AMP or other pedal unit
-
SPECIFICATION
Nominal Input Level................-20 dBu
Input Impedance.....................1M ohms
Nominal Output Level.............-20 dBu
Output Impedance..................100k ohms
Bypass True ...........................Hardwire
Current Draw...........................7 mA
Power Supply..........................9 V DC:
Size and Weight
Width.......................................113mm
Depth.......................................63mm
Height......................................34mm
Weight......................................0.3kg
-
INTRODUCTION
INTRODUCTION
Designed/Made Taiwan, Part of the MINI pedal series, the Classical Drive is a vintage overdrive sound and pro-quality tones with a compact box. It features two knob controls of Drive and level.A true bypass switch provides the shortest, direct cleanest tone. Tone weal design circuitry offers players a warm, classic, and full-sounding over drive tone.
-
FEATURE / SPECIFICATION
FEATURE
・Pure analog circuitry with Tone Weal design warm analog tone
・Vintage over-drive sound, Ideal for use with clean amps
・Pro-quality tones in a convenient carry
・Drive, Level controls
・True Bypass
1. DRIVE: This knob controls the intensity of the Ocerdrive effect
2. DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter
3. Level: This knob adjusts the volume of the effect sound
4. INPUT: This input jack receives output from electric guitar
5. PEDAL SWITCH: Toggles effect on (red LED indicator on),bypass(LED indicator off)
6. OUTPUT: This This output jack to AMP or other pedal unit
-
VIDEO
SPECIFICATION
Nominal Input Level................-20 dBu
Input Impedance.....................1M ohms
Nominal Output Level.............-20 dBu
Output Impedance..................100k ohms
Bypass True ...........................Hardwire
Current Draw...........................7 mA
Power Supply..........................9 V DC:
Size and Weight
Width.......................................113mm
Depth.......................................63mm
Height......................................34mm
Weight......................................0.3kg
