UT12 : 1X2 CH 24BIT/48KHz
-

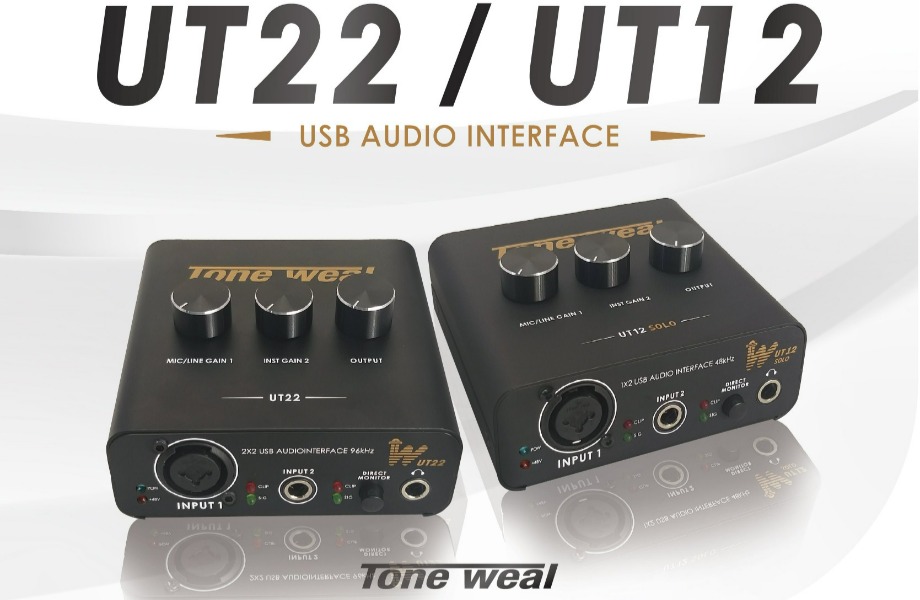

UT22 / UT12
2X2 / 1X2 USB audio live stream / Recording interface

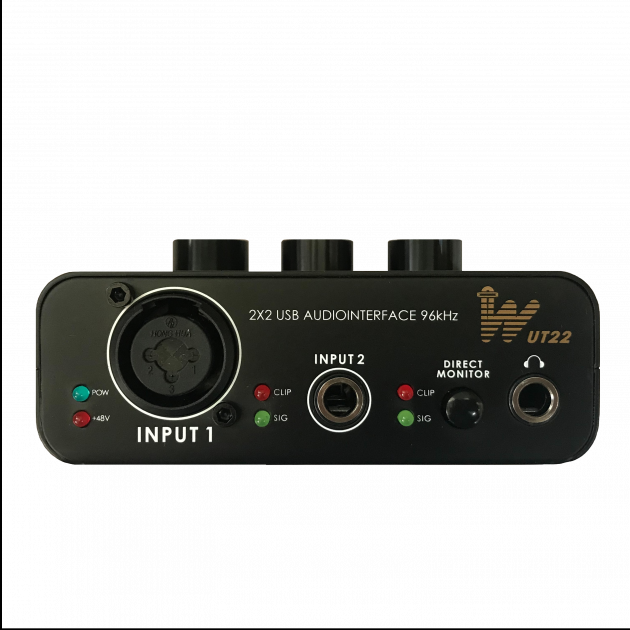

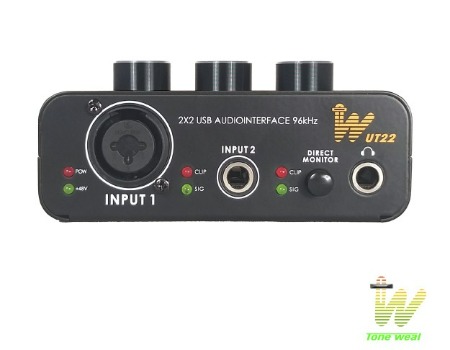

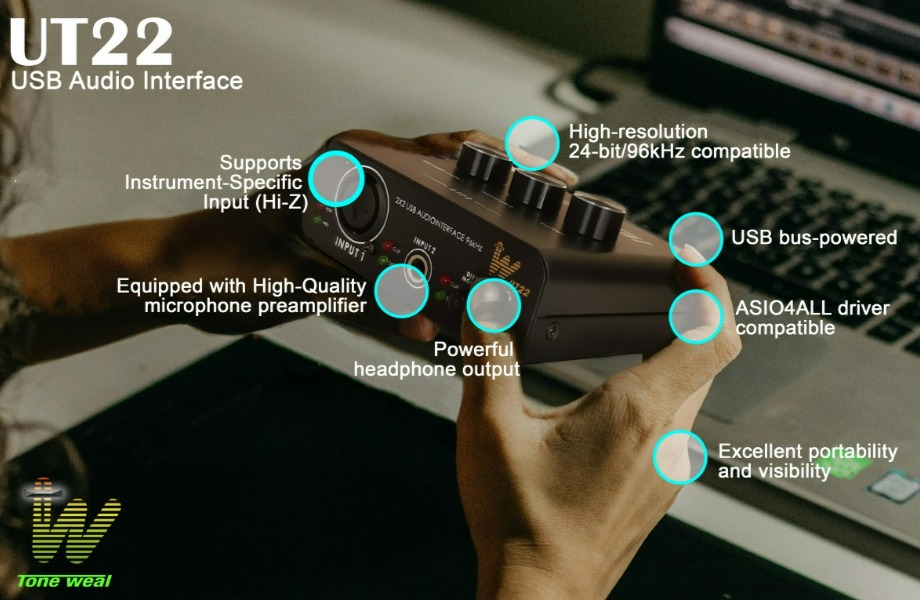

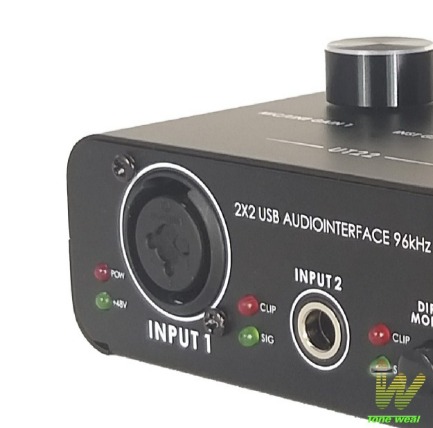

- UT22 FEATURE -
Hi-resolution 24bit / 96kHz 2-in 2-out USB audio interface
1 Mic preamp XLR combo jack with 48v phantom power
Musical instrument input for guitar and other high impedance sources
Lightweight carrying with easy-read indicators
USB bus powered 500mA support with USB connector B-type
Powerful Phones output with Level control and Direct Monitor selector
Combine with ASIO4ALL driver to get pro recording software running
Compatible with Windows / Win7 -W10 and Mac OS

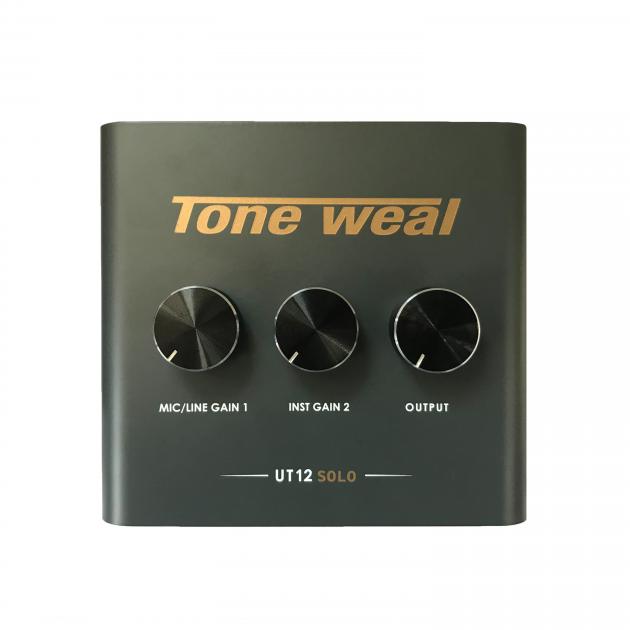

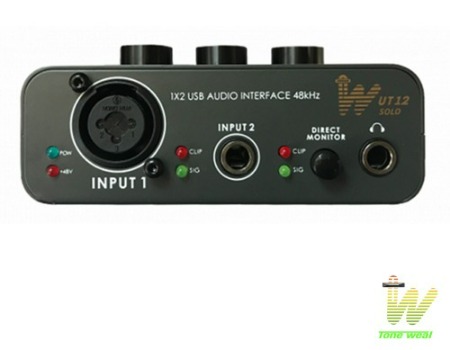

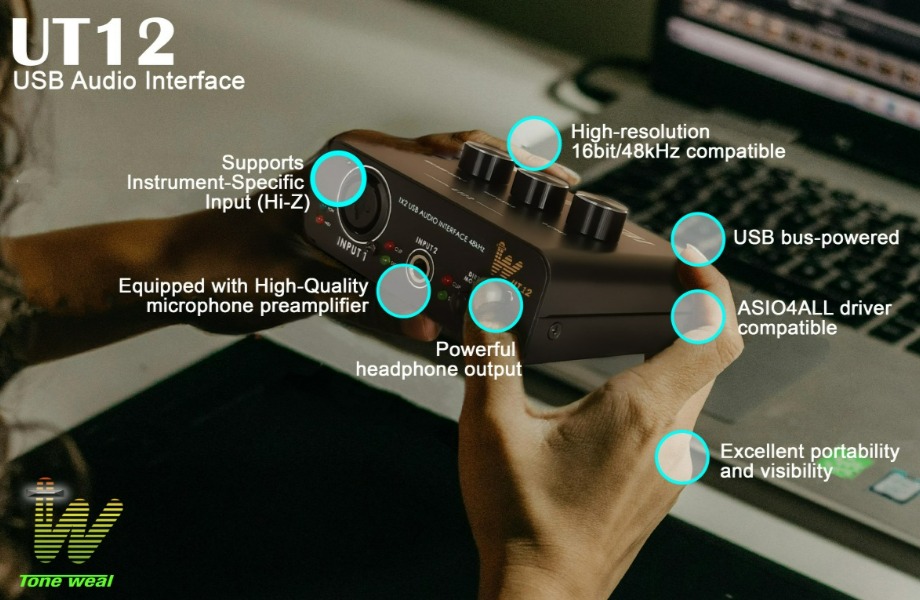

- UT12 FEATURE -
Quick-Plug&play 16bit/44.1-48kHz 1-in 2-out USB audio interface
1 Mic preamp XLR combo jack with 48v phantom power
Additional 1x phone jack for mix with main input channel
Musical instrument input for guitar and other music sources
Lightweight carrying with easy-read indicators
USB bus powered 500mA support with USB connector B-type
Powerful Phones output with Level control and Direct Monitor selector
Combine with ASIO4ALL driver to get pro recording software running
Compatible with Windows / Win7 -W10 and Mac OS
-
UT22 / UT12
Specifications
INPUT
PreAmp
Typical Mic preamp circuit
Type
1 x XLR / TRS combo connector ( Mic / Line ),
1 x 1 / 4" TRS ( Instrument )Frequency response
20 Hz – 20 kHz ( +1/ - 1 dB )
Impedance
( UT22 ) Mic in: 2.2K , 39K / Instrument in: 39K
( UT12 ) Mic in: 3K , 39K / Instrument in: 10K
Max. input level
Mic: -5 dBu / Line: +15 dBu / Instrument: +15dBu
Phantom power
+48 V, switchable

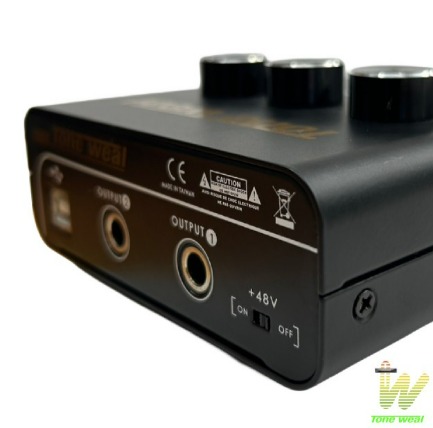

OUTPUTPUT
Type
1 x ." stereo ( Phones ), 2 x 1 / 4" TRS ( Line Out )
Frequency response
20 Hz – 20 kHz ( 1 / -1 dB )
Max. output level
+6 dBu
System data
Direct monitor control
Direct Monitor switch
Sample Rate
(UT12) 44.1 / 48 kHz ,
( UT22 ) 96 kHz
USB Type /Connector
1.1 / 2.0, type B
Operating systems
Windows / MAC
Windows Recording
driver
ASIO4allPower consumption
Max. 2.5 W
Power supply
USB connector ( bus-powered from computer )
Dimensions
38 (H) x 110 (W) x 100 (D) mm
Weight
0.4 kg ( 0.88 lbs )
-
-
Descriptions
UT22 / UT12
2X2 / 1X2 USB audio live stream / Recording interface
- UT22 FEATURE -
Hi-resolution 24bit / 96kHz 2-in 2-out USB audio interface
1 Mic preamp XLR combo jack with 48v phantom power
Musical instrument input for guitar and other high impedance sources
Lightweight carrying with easy-read indicators
USB bus powered 500mA support with USB connector B-type
Powerful Phones output with Level control and Direct Monitor selector
Combine with ASIO4ALL driver to get pro recording software running
Compatible with Windows / Win7 -W10 and Mac OS
- UT12 FEATURE -
Quick-Plug&play 16bit/44.1-48kHz 1-in 2-out USB audio interface
1 Mic preamp XLR combo jack with 48v phantom power
Additional 1x phone jack for mix with main input channel
Musical instrument input for guitar and other music sources
Lightweight carrying with easy-read indicators
USB bus powered 500mA support with USB connector B-type
Powerful Phones output with Level control and Direct Monitor selector
Combine with ASIO4ALL driver to get pro recording software running
Compatible with Windows / Win7 -W10 and Mac OS
-
Specification
UT22 / UT12
Specifications
INPUT
PreAmp
Typical Mic preamp circuit
Type
1 x XLR / TRS combo connector ( Mic / Line ),
1 x 1 / 4" TRS ( Instrument )Frequency response
20 Hz – 20 kHz ( +1/ - 1 dB )
Impedance
( UT22 ) Mic in: 2.2K , 39K / Instrument in: 39K
( UT12 ) Mic in: 3K , 39K / Instrument in: 10K
Max. input level
Mic: -5 dBu / Line: +15 dBu / Instrument: +15dBu
Phantom power
+48 V, switchable
OUTPUTPUT
Type
1 x ." stereo ( Phones ), 2 x 1 / 4" TRS ( Line Out )
Frequency response
20 Hz – 20 kHz ( 1 / -1 dB )
Max. output level
+6 dBu
System data
Direct monitor control
Direct Monitor switch
Sample Rate
(UT12) 44.1 / 48 kHz ,
( UT22 ) 96 kHz
USB Type /Connector
1.1 / 2.0, type B
Operating systems
Windows / MAC
Windows Recording
driver
ASIO4allPower consumption
Max. 2.5 W
Power supply
USB connector ( bus-powered from computer )
Dimensions
38 (H) x 110 (W) x 100 (D) mm
Weight
0.4 kg ( 0.88 lbs )
-
